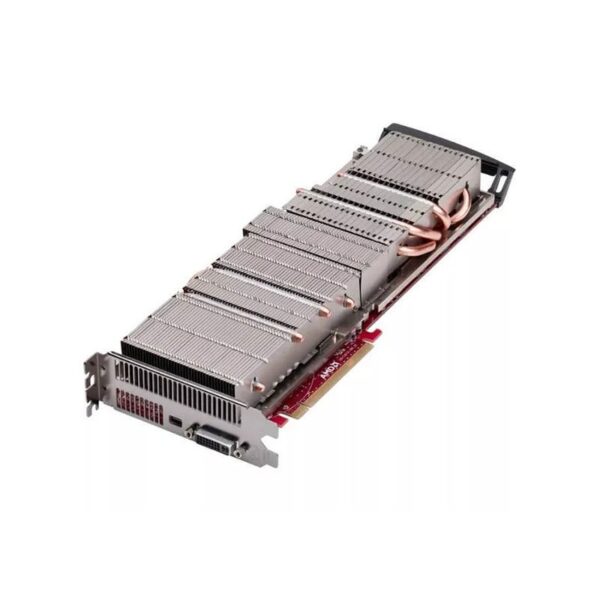

100-505858 AMD FirePro S10000 Passive Graphics Card for Servers

100-505858 Technical Specifications

AMD FirePro S10000 Passive Server Graphics Card

GPU
The AMD FirePro S10000 features a powerful GPU model with 3584 stream processors, delivering remarkable performance.
Floating Point Performance includes a Single Precision Performance of 5.91 TFLOPS and Double Precision Performance of 1.48 TFLOPS.
Interface
Utilizing PCI Express 3.0 x16, it supports a variety of APIs: OpenGL 4.4, OpenCL 1.2, DirectX 12, and Shader Model 5.
Memory
This graphics card is equipped with a 6 GB GDDR5 memory configuration, with a 384-Bit memory interface and a bandwidth of 480 GB/s.
Display Support
It includes connectors such as 1 x DVI-I DL and 1 x Mini DisplayPort, supporting a maximum digital resolution of 4096 x 2160.
Power Requirements
The card requires a maximum power consumption of 375 W, with 2 x 8-Pin PCI power connectors and a recommended system power requirement of 750 W.
Dimensions
With a length of 12.3 inches (31.2 cm) and a dual-slot width, this card is designed for superior performance in server settings.
