1754A2X Technical Specifications

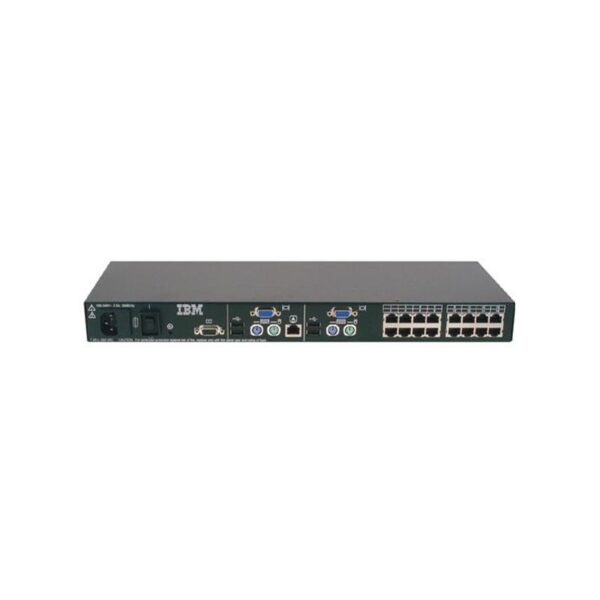

IBM 2×16 Console Manager KVM Switch (LCM16)

Manufacturer: IBM
Part Number: 1754A2X
Number of Ports: 16
Weight: 4.18 pounds (3.5 kg)
Dimensions: 6.5 x 17.01 x 1.89 inches (LxWxH)
Voltage: 240 Volts
Brand: LENOVO
Rack Mountable: Yes, 1U capacity
Color: Black
Ethernet LAN: Yes, with 16 RJ-45 ports
Controlled Computers: Up to 256
Keyboard and Mouse Ports: USB, PS/2
Video Port: VGA, with 2 VGA (D-Sub) ports
USB 2.0 Ports: 8
PS/2 Ports: 4
Console Port: RJ-45
Max Resolution: 1600 x 1200 pixels
Built-in Display: No
Dimensions: Width: 431.8 mm, Depth: 165.1 mm, Height: 43.7 mm
Harmonized System (HS) Code: 85176200
