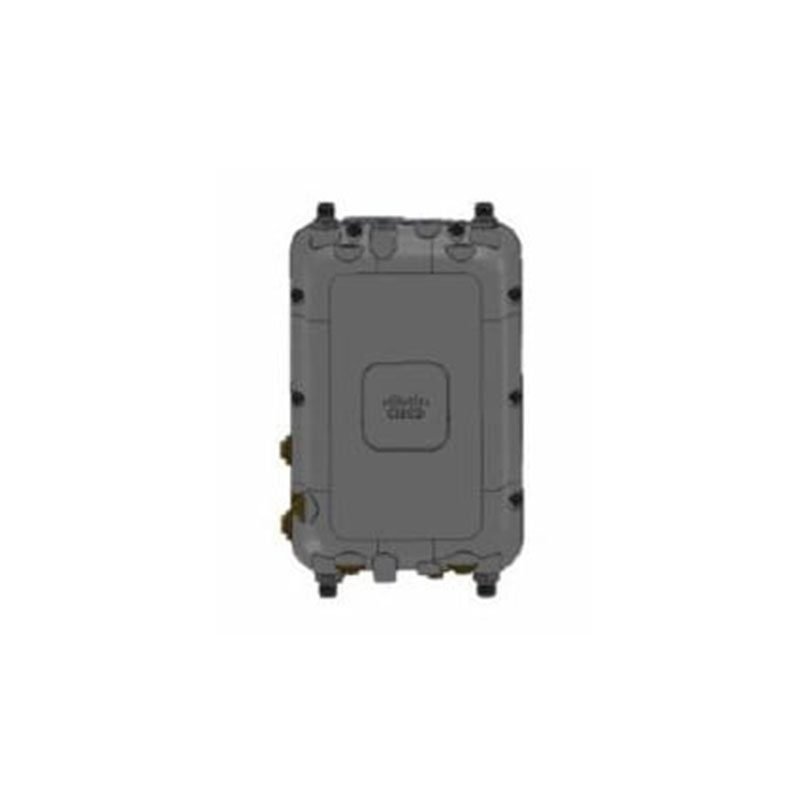

AIR-AP1572EAC-I-K9 Cisco Aironet Outdoor Wireless Access Point

AIR-AP1572EAC-I-K9 Technical Specification

Cisco Aironet Wireless Access Point

Networking
Form Factor: External
Connectivity Technology: Wireless
Data Transfer Rate: Up to 1.3 Gbps
Line Coding Format: CCK
Supported Data Link Protocols: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Spread Spectrum Method: DSSS
Network/Transport Protocols: L2TP, IPSec
Frequency Bands: 2.4 GHz and 5 GHz
Status Indicators: Uplink and status
Features: Auto-sensing, MAC address filtering, DFS support, VPN passthrough, CleanAir technology, reset button, pole mountable, Maximum Ratio Combining (MRC), 4T4R MIMO technology, GPS sync compatibility, ClientLink 3.0, cyclic shift diversity (CSD), Cisco Flexible Antenna Port technology, packet aggregation A-MPDU, and A-MSDU.
Encryption: Supports LEAP, AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2.
Authentication: X.509 certificates, Extensible Authentication Protocol (EAP).
Compliant Standards: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3at, and IEEE 802.11ac.
Environmental Parameters
Min Operating Temperature: -40 °F
Max Operating Temperature: 149 °F
General
Device Type: Wireless access point
Ruggedized Design: Outdoor
Built-in Devices: GPS
Dimensions: 7.9 in (W) x 6.3 in (D) x 11.8 in (H)
Weight: 13.45 lbs
Localization: Israel
Expansion/Connectivity
Interfaces: 4 x antenna – N connector, 1 x SFP (mini-GBIC), 1 x console – RJ-45, 1 x antenna.
Power
Power Over Ethernet (PoE): Supported UPOE
Voltage Required: AC 120/230 V / DC 10 – 16 V (50/60 Hz)
