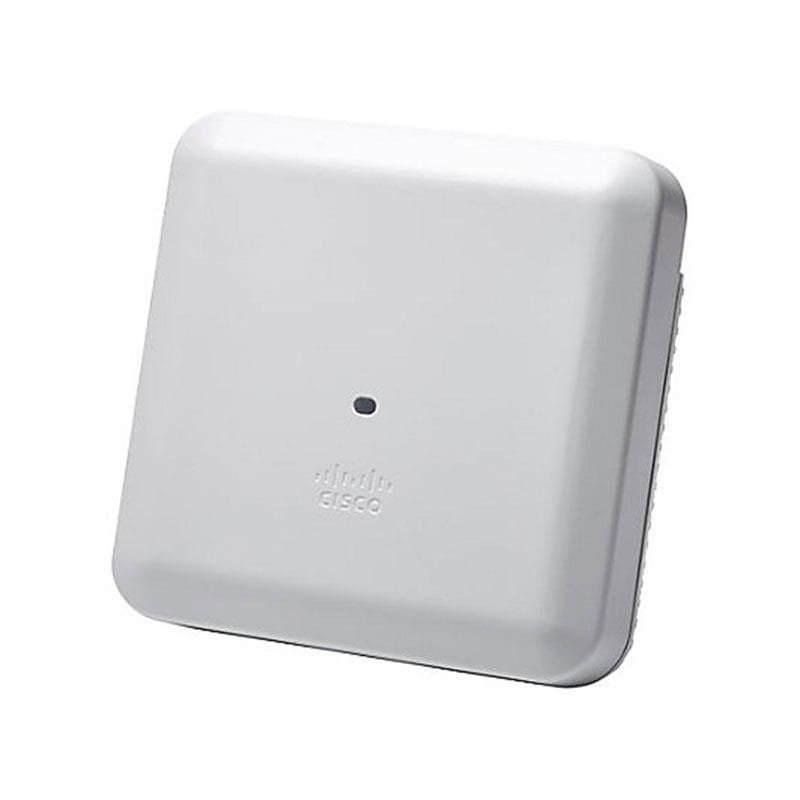

AIR-AP2802I-B-K9, Cisco Aironet AP2802I Wireless Access Point, 1.30 Gbit/s

AIR-AP2802I-B-K9 Technical Specifications

Cisco Aironet AP2802I IEEE 802.11ac 1.30 Gbit/s Wireless Access Point

Frequency Bands and Operating Channels
Q (Q regulatory domain):
– 2.412 to 2.472 GHz; 13 channels available
– 5.180 to 5.320 GHz; 8 channels available
– 5.500 to 5.700 GHz; 11 channels available
Antenna Type
Internal Antenna
Key Features
– 4×4 MU-MIMO technology with three spatial streams
– Maximum ratio combining (MRC)
– 802.11ac Beamforming support
– Channel widths of 20, 40, 80, and 160 MHz
– Peak PHY data rates reaching up to 5.2 Gbps
– Packet aggregation capabilities: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
– Support for 802.11 DFS
– CSD compatibility
Connectivity Interfaces
– 2 x 100/1000BASE-T autosensing ports (RJ-45)
– Management console port (RJ-45)
– USB 2.0 (activation through future software)
Memory Specifications
– 1024 MB DRAM
– 256 MB flash memory
Dimensions (W x L x H)
8.66 x 8.68 x 2.17 inches
Weight
3.53 lb (1.6 kg)
