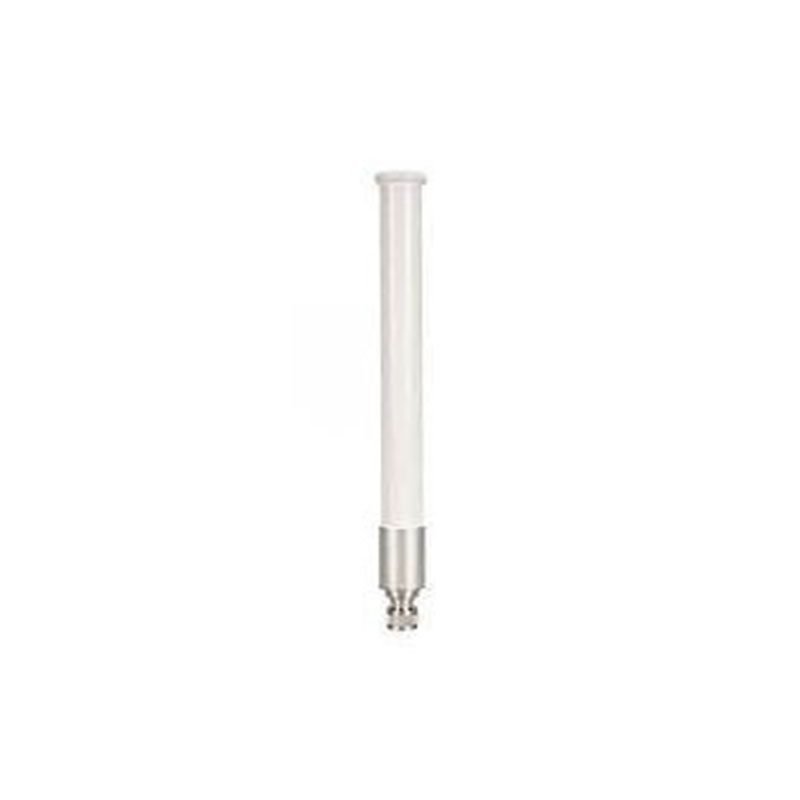

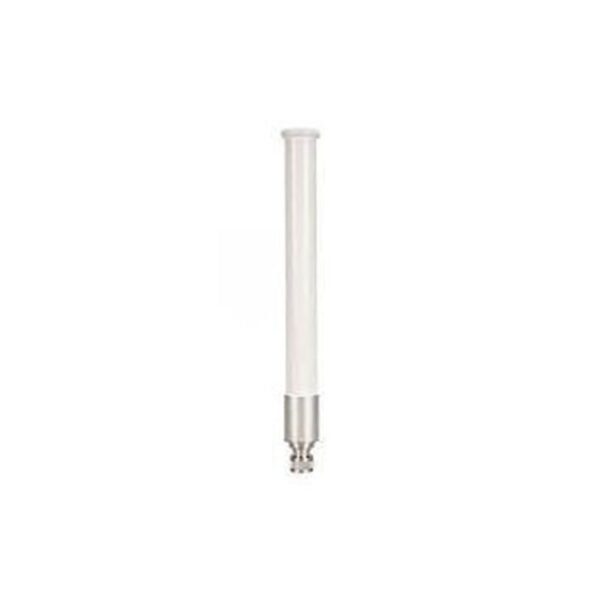

ANT-LPWA-DB-O-N-5 Cisco Outdoor Antenna

ANT-LPWA-DB-O-N-5

Cisco Antenna

Manufacturer: Cisco Systems
Brand: Cisco
Product Line: Cisco
Packaged Quantity: 1
General Information
Product Type: Antenna
Accessory Category: Antennas
Package Includes: 2 mounting brackets, 2 hex bolts, 2 V-bolt clamps, 4 flat washers, 4 hex nuts, 4 split lock washers, anodized sleeve, top cap with N (female) connector, UV-resistant fiberglass radome.
Antenna Specifications
Gain: 5 dBi
Mounting Options: Outdoor, pole mount, wall-mountable
Directivity: Omni-directional
Frequency Range: 863 – 928 MHz
Impedance: 50 ohm
Compatibility: ISM, LoRaWan, WPAN
VSWR: 1.5:1, maximum 1.65:1
Beamwidth: Horizontal 360°, Vertical 30°
Connector Information
Provided Connector: 1 x N connector female
Cabling & Wiring
Compliant Standards: IP67
Miscellaneous
Color: White
Color Category: White
Features: DC-grounded for ESD protection, lightning-resistant, IP67 rated, vertical polarization.
Dimensions & Weight
Width: 1.3 inches
Depth: 1.3 inches
Height: 27.2 inches
Weight: 27.86 ounces
Environmental Parameters
Min Operating Temperature: -40°F
Max Operating Temperature: 158°F
