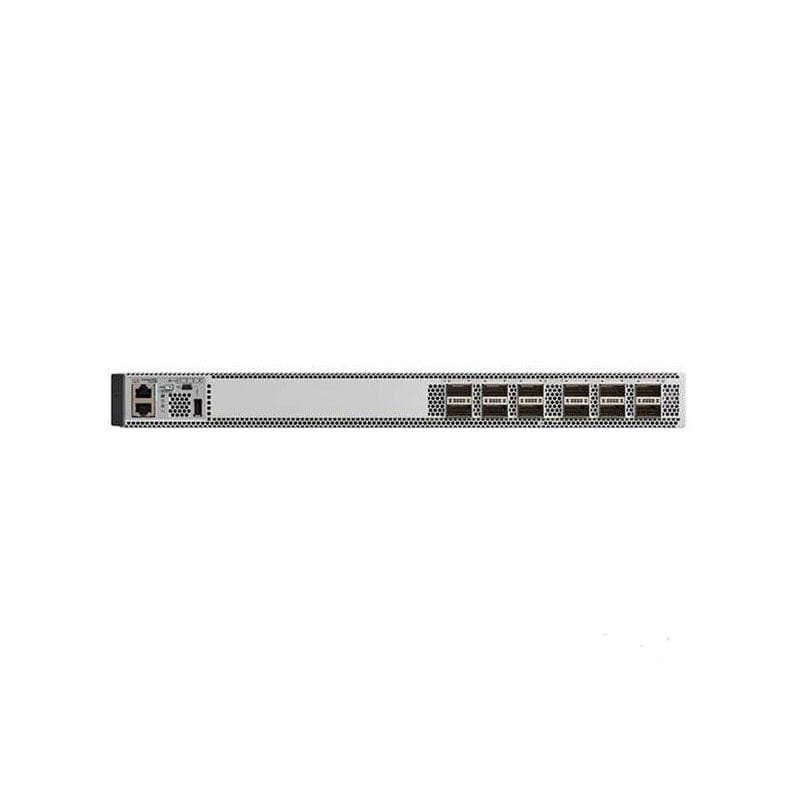

C9500-12Q-A, Cisco Catalyst 9500 Series 12-port 40G Switch

C9500-12Q-A Technical Specifications

Cisco Catalyst 9500 12-port 40G Switch, Advantage

General Information
Manufacturer: Cisco Systems, Inc
Part Number: C9500-12Q-A
Brand: Cisco
Series: C9500
Product Line: Cisco Catalyst
Device Type: Managed Switch – 12 Ports – L3 – Stackable
Enclosure: Rack-mountable 1U
Subtype: 40 Gigabit Ethernet
Ports: 12 x 40 Gigabit QSFP
Performance
Switching Capacity (full duplex): 480 Gbps | Forwarding Rate: 720 Mpps
Capacity
Indirect IPv4 Routes: 64,000 | Host IPv4 Routes: 32,000 | Indirect IPv6 Routes: 32,000 | Host IPv6 Routes: 16,000 | Multicast Scale: 48,000 | QoS ACL Scale: 18,000 | Security ACL Scale: 18,000 | FNF Entries: 512,000 | VLAN IDs: 4,000 | Switched Virtual Interfaces (SVIs): 4,000
MAC Address Table: 64K entries
Jumbo Frame Support: 9198 bytes
Routing Protocols: OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, Policy-Based Routing (PBR), RIPng
Remote Management Protocols: SNMP v1, RMON v1, RMON v2, SNMP v3, TFTP, NETCONF, RESTCONF
Encryption: 256-bit AES
Processor: 2.4 GHz
RAM: 16 GB
Flash Memory: 16 GB
Built-in Devices: RFID tag
Status Indicators: Status
Expansion / Connectivity
Interfaces: 12 x 40Gbit LAN QSFP
Power
Power Device: Internal hot-plug power supply
Installed Qty: 2 (installed) / 2 (max)
Power Redundancy: Yes (1+1 scheme)
Power Provided: 950 Watts
Voltage Required: AC 120/230 V (50 – 60 Hz)
