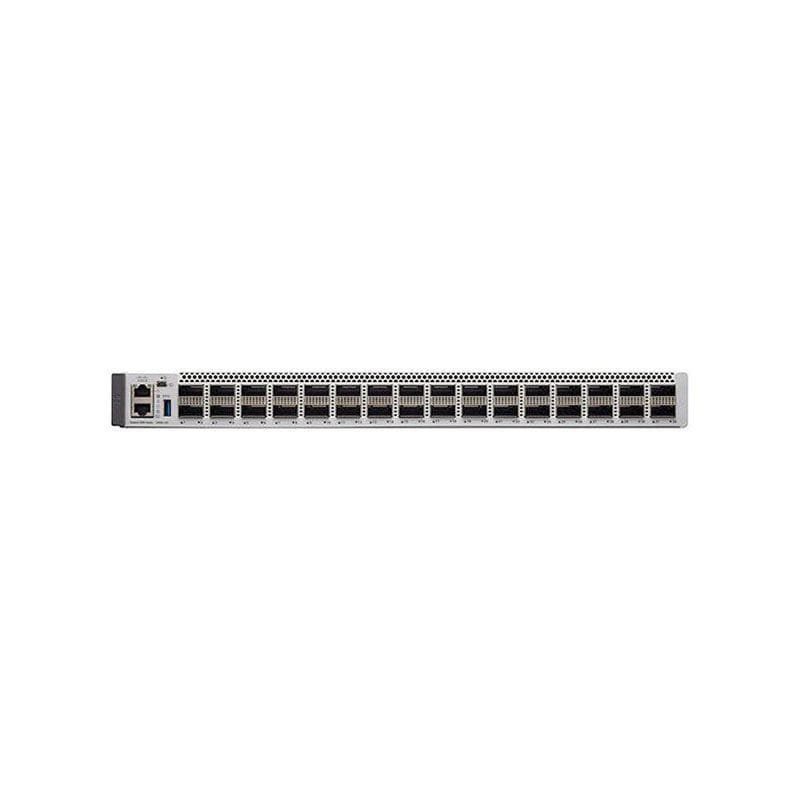

C9500-32QC-E, Cisco Catalyst 9500 Series 32-Port 40G Switch

C9500-32QC-E Technical Specifications

Cisco Catalyst 9500 100/40-G 32-port switches: C9500-32C, C9500-32QC

Capacity

• FNF entries: 96,000
• Host IPv4 routes: 90,000
• Host IPv6 routes: Not specified
• Indirect IPv4 routes: 212,000
• Indirect IPv6 routes: Not specified
• Multicast scale: 32,000
• QoS ACL scale: 16,000
• Routing table entries: 80,000
• Security ACL scale: 270,000
• Switched virtual interfaces (SVIs): Not specified
• VLAN IDs: 4,000

Dimensions & Weight

• Depth: 18 in
• Height: 1.7 in
• Weight: 21.85 lbs
• Width: 17.5 in

Environmental Parameters

• Operating Humidity: 5 – 90% (non-condensing)
• Storage Humidity: 5 – 95% (non-condensing)
• Max Operating Temperature: 104 °F
• Max Storage Temperature: 149 °F
• Min Operating Temperature: 32 °F
• Min Storage Temperature: -4 °F

Flash Memory

• Installed Size: 16 GB

Header

• Brand: Cisco
• Edition: Network Essentials
• Manufacturer: CISCO DS HARDWARE DIRECT
• Model: 9500
• Packaged Quantity: 1
• Product Line: Cisco Catalyst

Interface Provided

• Connector Type: QSFP, Qty: 32
• Type: 100Gbit/40Gbit LAN, Qty: 2
• Type: USB 3.0

Miscellaneous

• Color Category: Gray
• Compliant Standards: Various international standards
• Encryption Algorithm: 256-bit AES
• Height (Rack Units): 1
• MTBF: 307,200 hours

Networking

• Advanced Switching: Layer 3
• Compliant Standards: IEEE standards
• Features: Extensive feature set including QoS, security, and management capabilities
• Form Factor: Rack-mountable
• Jumbo Frame Support: 9198 bytes
• Manageable: Yes
• Ports Qty: 32
• Remote Management Protocol: Multiple protocols supported
• Routing Protocol: Various protocols supported
• Stackable: Yes
• Subcategory: Network hubs and switches
• Subtype: 40 Gigabit Ethernet
• Type: Switch

Performance

• Forwarding rate: 1 Bpps
• Switching capacity (full duplex): 3.2 Tbps

Ports

• Qty: 32
• Type: 40 Gigabit QSFP

Power Device

• Frequency Required: 50 – 60 Hz
• Hot-Plug: Yes
• Installed Qty: 1
• Max Supported Qty: 2
• Nominal Voltage: AC 120/230 V
• Power Provided: 650 Watt
• Power Redundancy: Optional
• Power Redundancy Scheme: 1+1
• Type: Internal power supply

Processor

• Clock Speed: 2.4 GHz
• Installed Qty: 1

RAM

• Installed Size: 16 GB

Software

• Type: Cisco IOS XE 16.8.1
