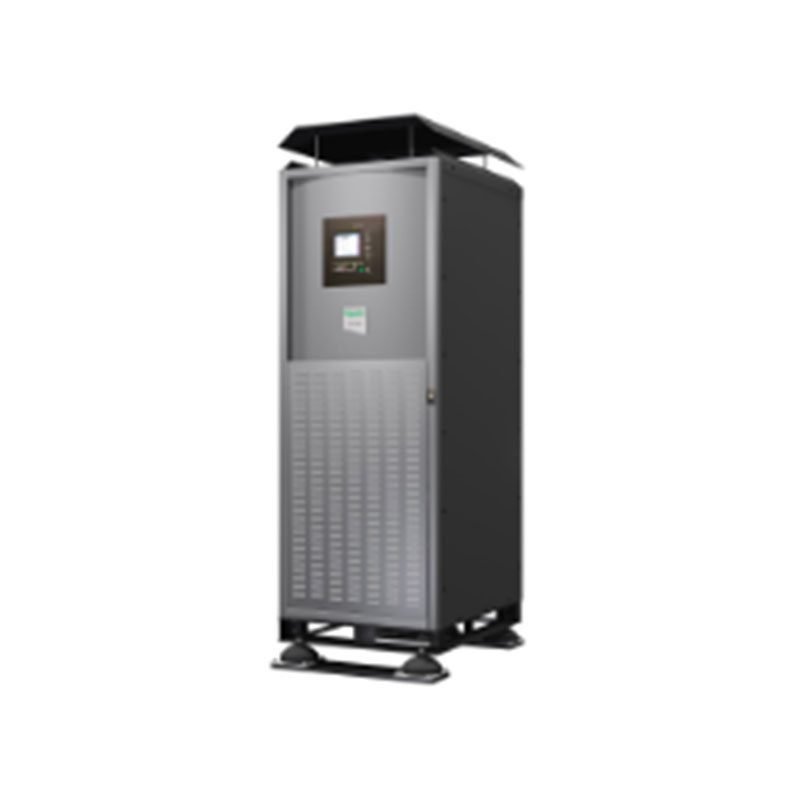

G55TUPM40HXS MGE Galaxy 5500 40kVA UPS System

G55TUPM40HXS Technical Specifications

MGE Galaxy 5500 40kVA 400-415V Integrated Parallel UPS for Offshore Use

Output
Maximum Configurable Power: 36.0kWatts / 40.0kVA
Neutral Output Current: 87A
Configurable Output Voltage: 400 or 415V 3 Phase
Efficiency at Full Load: 91.0%
Output Voltage Distortion: < 2%
Output Frequency: 50 Hz, programmable +/- 0.5 / 1 / 2 / 4 / 6 / 8%
Other Output Voltages: 380, 415
Topology: Double Conversion Online
Waveform Type: Sine wave
Input
Input Frequency: 45 – 65 Hz
Input Voltage Range: 323 – 437 (380V), 340 – 460 (400V), 353 – 477 (415V)V
Efficiency at Full Load: 91.0%
Batteries & Runtime
Battery Type: External battery system required
Physical
Dimensions: 85.83in x 28.03in x 33.66in
Environmental
Operating Temperature Range: 32 – 104 °F (0 – 40 °C)
Audible Noise Level: 65.0dBA
Protection Class: IP 20, IP 32.
