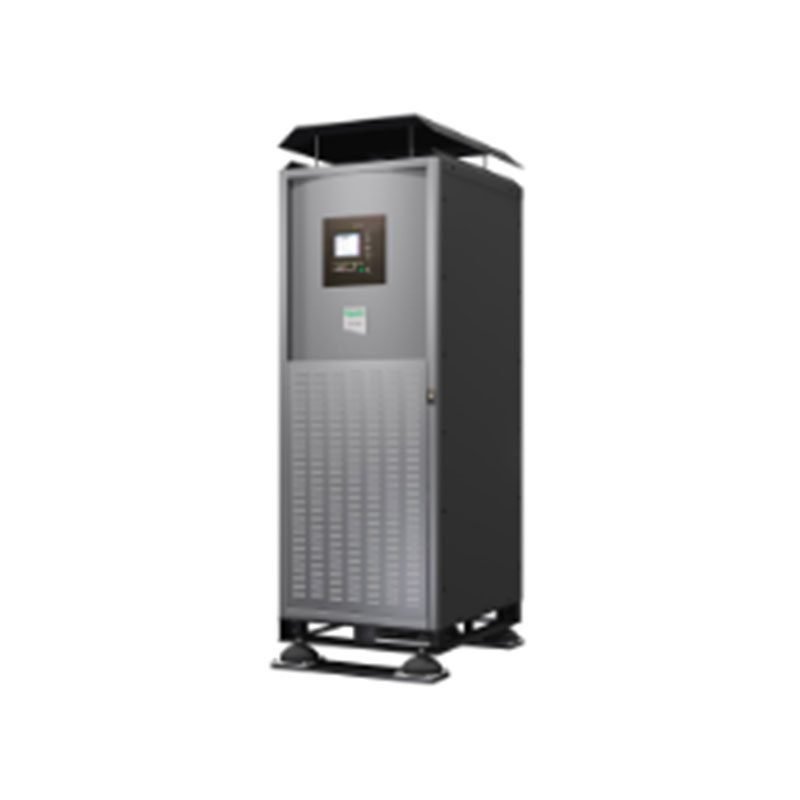

G55TUPU20HXS MGE Galaxy 5500 20kVA UPS System

G55TUPU20HXS Technical Specifications

MGE Galaxy 5500 20kVA UPS for Offshore Use, IP22, RAL 7035, Start-up 5X8

Output
Max Configurable Power (Watts): 18.0kWatts / 20.0kVA
Neutral Output Current: 43A
Configurable Output Voltage: 400 or 415V 3 Phase
Efficiency at Full Load: 87.0%
Output Voltage Distortion: Less than 2%
Output Frequency (sync to mains): 50 Hz – programmable +/- 0.5 / 1 / 2 / 4 / 6 / 8%
Other Output Voltages: 380, 415
Topology: Double Conversion Online
Waveform: Sine wave
Overload Operation: 10 minutes @ 125% and 60 seconds @ 150%
Input
Input Voltage Range: 323 – 437 (380V), 340 – 460 (400V), 353 – 477 (415V)
Efficiency at Full Load: 87.0%
Input Protection: gL fuse
Batteries & Runtime
Battery type: External system required
Expected Battery Life: 8 – 10 years
Physical
Dimensions: 85.83in x 28.03in x 33.66in
Weight: 1003.2lbs (Net), 1056.0lbs (Shipping)
Environmental
Operating Temperature: 32 – 104 °F (0 – 40 °C)
Protection Class: IP 20, IP 32.
