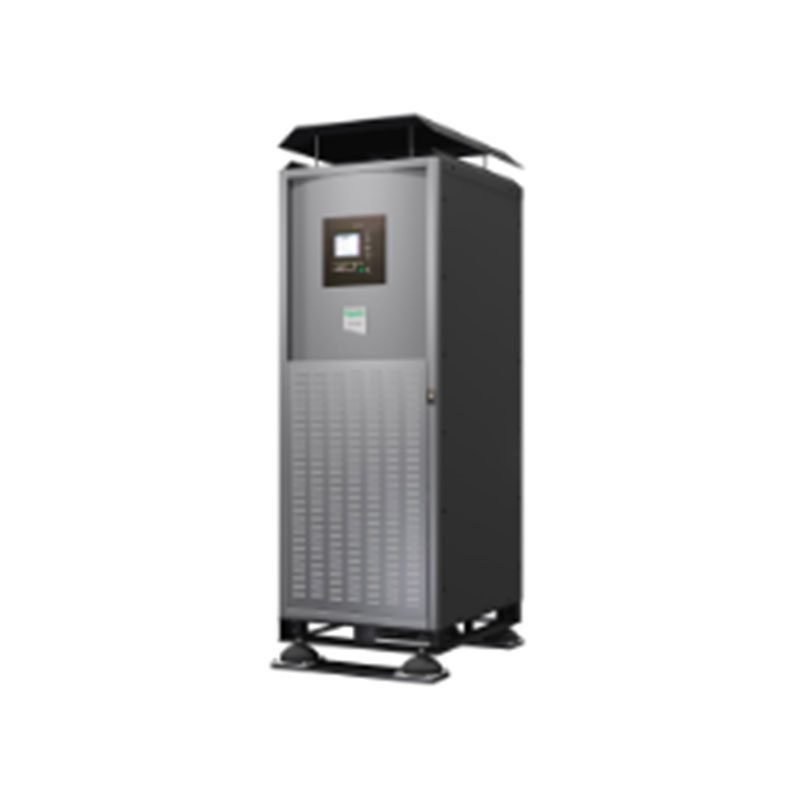

G55TUPU80HMS MGE Galaxy 5500 80kVA Single UPS 400-415V

G55TUPU80HMS Technical Specifications

MGE Galaxy 5500 80kVA 400-415V Single UPS Marine IP22 RAL 7035, Start-up 5X8

Output
Max Configurable Power (Watts): 72.0kWatts / 80.0kVA
Neutral Output Current: 115A
Output Voltage Note: Configurable for 400 or 415V three-phase nominal output voltage
Efficiency at Full Load: 93.0%
Output Voltage Distortion: Less than 2%
Output Frequency (sync to mains): 50 Hz – programmable +/- 0.5 / 1 / 2 / 4 / 6 / 8%
Other Output Voltages: 380, 415
Topology: Double Conversion Online
Waveform Type: Sine wave
Overload Operation: 10 minutes at 125% and 60 seconds at 150%
Input
Input Frequency: 45 – 65 Hz
Input Voltage Range for Main Operations: 323 – 437 (380V), 340 – 460 (400V), 353 – 477 (415V)
Efficiency at Full Load: 93.0%
Batteries & Runtime
Battery Type: No internal battery – utilizes external battery system. Expected Battery Life: 8 – 10 years.
Physical
Maximum Height: 87.01 inches (2210MM), Maximum Width: 28.03 inches (712MM), Maximum Depth: 33.66 inches (855MM).
Environmental
Operating Temperature: 32 – 104 °F (0 – 40 °C). Operating Relative Humidity: 0 – 95%.
