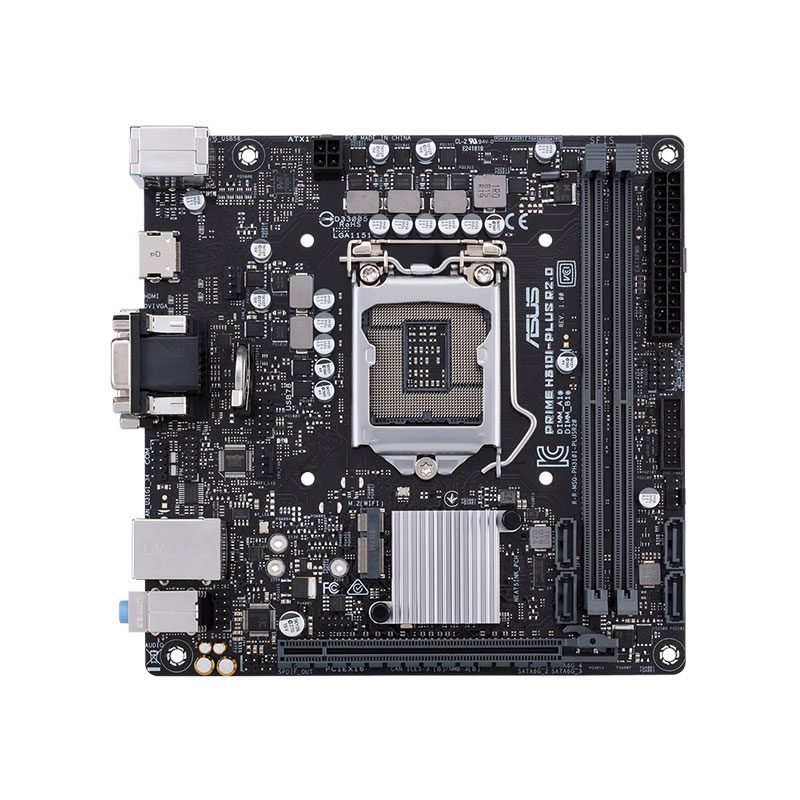

H310I-PLUS R2.0/CSM ASUS LGA 1151 Mini ITX Motherboard

PRIME H310I-PLUS Technical Specifications

R2.0/CSM ASUS LGA 1151 (300 Series) Mini ITX Motherboard

Brand
ASUS
Series
Prime
Model
H310I-PLUS R2.0/CSM
Supported CPU
Socket Type: LGA 1151 (300 Series)
Compatible with 8th Generation Intel Core i7/i5/i3, Pentium, and Celeron processors.
Supported Technologies
Includes Intel Turbo Boost Technology 2.0*
Chipset
Intel H310
Onboard Video
Integrated Graphics Processor with support for HDMI, DVI-D, and D-Sub outputs. Maximum resolutions reach up to 4096 x 2160 @ 24 Hz or 1920 x 1200 @ 60 Hz across various ports. Shared memory capacity is 1024MB.
Memory
2×288pin slots supporting DDR4 memory at speeds of 2666/2400/2133 MHz, with a maximum capacity of 32GB in dual channel configuration.
Expansion Slots
1 x PCIe 3.0 x16 and 1 x M.2 socket for Wi-Fi/BT devices or storage options.
Storage Devices
4 x SATA 6Gb/s ports and an M.2 socket supporting both SATA and PCIe modes.
Audio and LAN
Realtek ALC887 audio chipset with 8 channels and Realtek RTL8111H LAN chipset supporting up to 1000Mbps.
