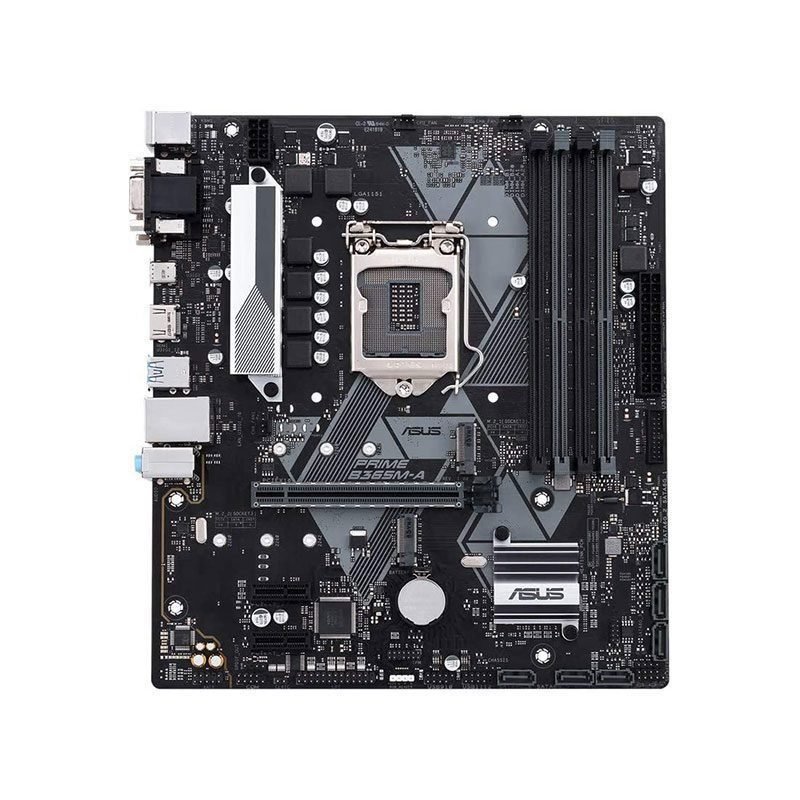

PRIME B365M-A ASUS Motherboard for 9th/8th Gen Intel Processors

PRIME B365M-A Technical Specifications

ASUS Motherboard for 9th/8th Gen Intel Processors with Aura Sync RGB Header

Model
Brand: ASUS
Model: PRIME B365M-A
Supported CPU
CPU Socket Type: LGA 1151 (300 Series)
CPU Type: Intel Socket 1151 for 9th/8th Gen Core i7/i5/i3 / Pentium / Celeron processors. Note: Not compatible with older LGA 1151 CPUs.
Supported Technologies: Intel Turbo Boost Technology 2.0, dependent on CPU type.
Chipsets
Chipset: Intel B365
Onboard Video
Integrated Graphics: Intel HD Graphics with multiple outputs including HDMI, DVI-D, and D-Sub, supporting resolutions up to 4096 x 2160 @ 30 Hz for HDMI.
Memory
Slots: 4×288pin, supporting DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered memory, with a maximum capacity of 64GB. Dual Channel supported.
Expansion Slots
1 x PCI Express 3.0 x16 and 2 x PCIe 3.0/2.0 x1 slots available.
Storage Devices
6 x SATA 6Gb/s ports and dual M.2 sockets for storage devices, Intel Optane ready.
Audio and LAN
Audio Chipset: Realtek ALC887 with 8-channel output, LAN Chipset: Realtek RTL8111H with speeds up to 1000Mbps.
Ports
Comprehensive rear panel including USB 3.1 Gen 1 and audio I/O connectors.
