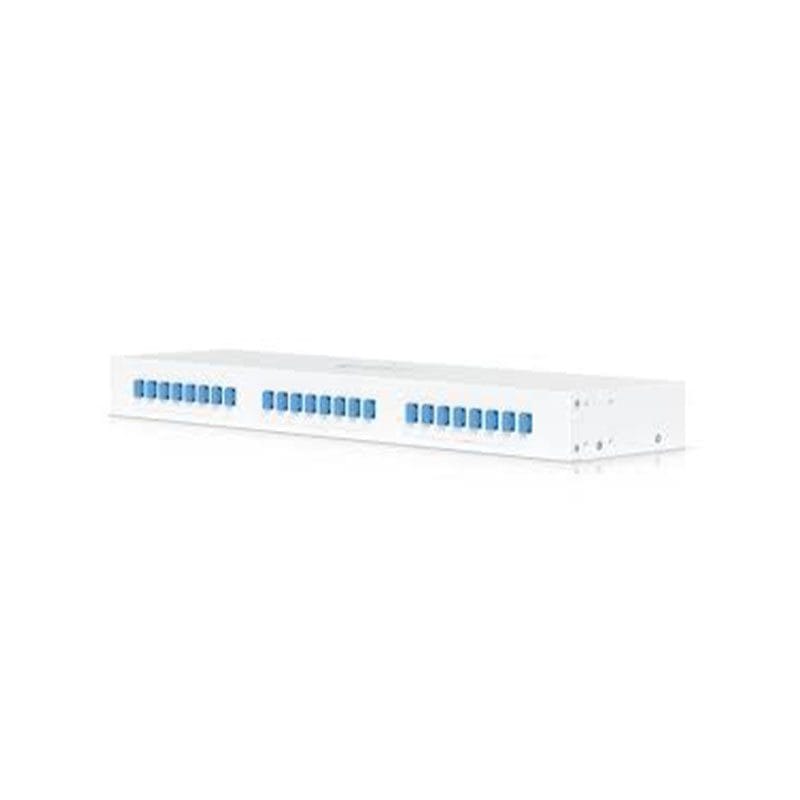

UACC-UF-WDM-XGS Technical Specifications
UBIQUITI UISP Fiber Coexistence WDM Filter
Manufacturer: Ubiquiti
Brand: Ubiquiti
Mechanical Specifications:
Weight: 1.8 kg (3.97 lb)
Enclosure Material: Metal
Connector Types: (8) COM (SC/UPC), (8) GPON (SC/UPC), (8) XGS/XG-PON (SC/UPC)
GPON – COM Port:
Wavelength Range: 1290—1330 nm, 1480—1500 nm
Max Insertion Loss: 1 dB
Min Isolation: 25 dB
XGS-PON – COM Port:
Wavelength Range: 1260—1280 nm, 1575—1580 nm
Max Insertion Loss: 1 dB
Min Isolation: 25 dB
Min Return Loss: 50 dB
Max Polarization Dependent Loss: 0.1 dB
Fiber Type: ITU-T G.657.A1 Single Mode Fiber.
