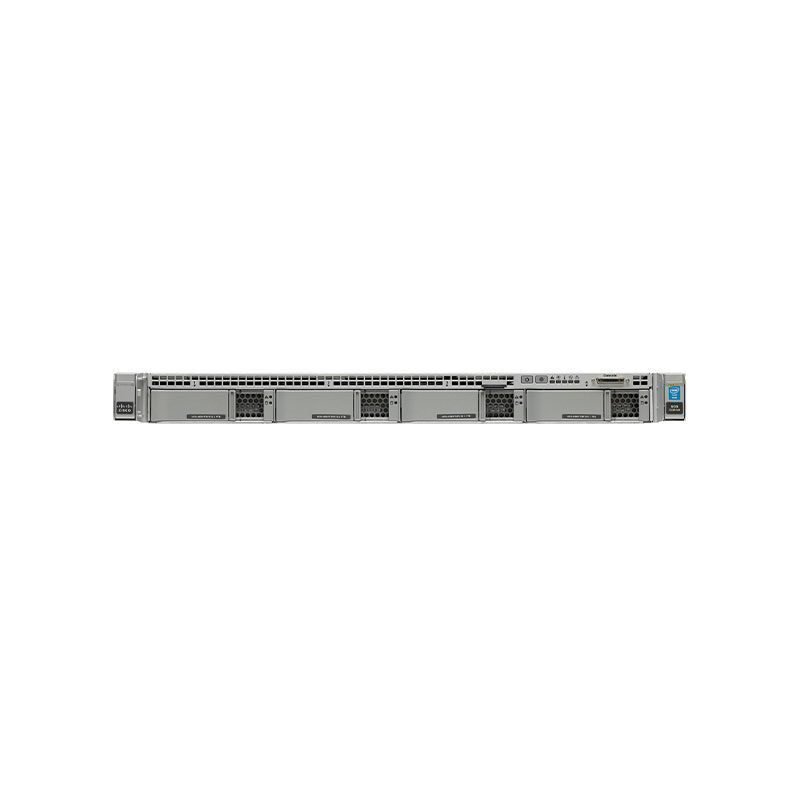

UCSC-C220-M4SNEBS Cisco UCS C220 M4 High-Density Rack Server

UCSC-C220-M4SNEBS Technical Specifications

Cisco UCS C220 M4 High-Density Rack Server

Bay Provided
Form Factor: 2.5″ SFF
Free Qty: 8
Total Qty: 8 Bays
Chassis
Form Factor: Rack-mountable
Hot-Swap Bays Qty: 8
Manufacturer Form Factor: Rack-mountable
Server Storage Bays: Hot swap
Server Swappable Drive Form Factor: 2.5″
Server Swappable Drive Interface: SATA
Dimensions & Weight
Depth: 29.8 in
Height: 1.7 in
Width: 16.9 in
Display
Type: None.
Environmental Parameters
Humidity Range Operating: 10 – 90% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 41 °F
Expansion Bays
Form Factor (metric): 6.4 cm SFF
Type: Hot-swap
Expansion Slots
Size: Half-length, low-profile
Size: Three-quarter-length, full-height
Slot Comments: X16 mode
Type: PCIe 3.0 x24
Type: CPU
Type: DIMM 288-pin
Type: SD card (internal)
Hard Drive
Type: No HDD
Header
Brand: Cisco
Compatibility: PC
Edition: NEBS
Manufacturer: Cisco Unified Computing
Model: C220 M4 High-Density Rack Server (Small Form Factor Disk Drive Model)
Packaged Quantity: 1
Product Line: Cisco UCS
Interface Provided
Connector Type: RJ-45
Type: Serial
Location: 1 in front
Type: KVM
Qty: 1
Type: VGA
Qty: 2
Type: USB 3.0
Type: LAN (Gigabit Ethernet)
Type: Management (NIC)
Mainboard
Processor Socket: LGA2011-v3 Socket
Miscellaneous
Color Category: Silver
Compliant Standards: AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, Directive 2004/108/EC, Directive 2006/95/EC, EN 300 386, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, GB4943.1-2001, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, UL 60950-1 Second Edition, VCCI Class A
