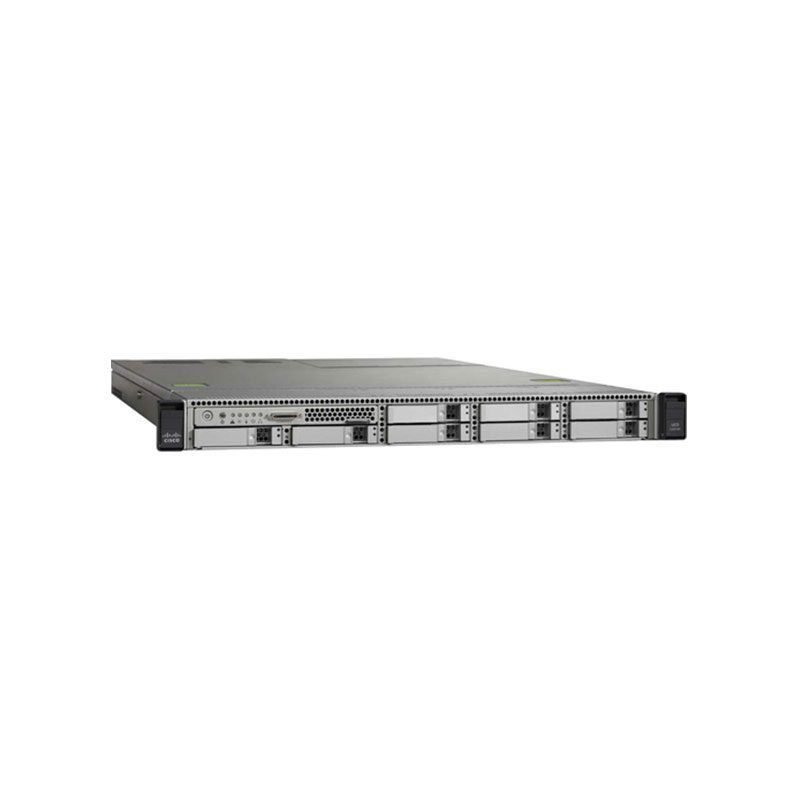

WMS-EZ-C220-250I Cisco UCS C220 M3 High-Density Rack Server

WMS-EZ-C220-250I Technical Specifications

Cisco UCS C220 M3 High-Density Rack Server

Bay Provided
Form Factor: 3.5″
Free Qty: 0
Total Qty: 8 Bays
Cache Memory
Installed Size: 40 MB
Per Processor Size: 20 MB
Type: L3 cache
Chassis
Form Factor: Rack-mountable
Hot-Swap Bays Qty: 8 Bays
Manufacturer Form Factor: Rack-mountable
Server Storage Bays: Hot swap
Server Swappable Drive Form Factor: 3.5″
Server Swappable Drive Interface: SAS
Dimensions & Weight
Depth: 28.5 in
Height: 1.7 in
Weight: 22.05 lbs
Width: 16.9 in
Environmental Parameters
Humidity Range Operating: 10 – 90% (non-condensing)
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Expansion Bays
Form Factor (metric): 8.9 cm
Type: Hot-swap
Expansion Slots
Size: Half-length
Type: PCIe 2.0 x8, PCIe 2.0 x16, CPU, Memory
Hard Drive
Installed Qty: 4
Removable: Hot-swap
Spindle Speed: 7200 rpm
Type: HDD
Header
Brand: Cisco
Compatibility: PC
Model: C220 M3 High-Density Rack Server
Networking
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(s): Intel I350
Ethernet Ports: 2 x Gigabit Ethernet
Power Device
Installed Qty: 2
Max Supported Qty: 2
Power Provided: 650 Watt
Power Redundancy: Yes
Processor
Clock Speed: 2.6 GHz
Installed Qty: 2
Processor Number: E5-2670
RAM
Installed Size: 64 GB
Max Supported Size: 256 GB
Technology: DDR3 SDRAM
