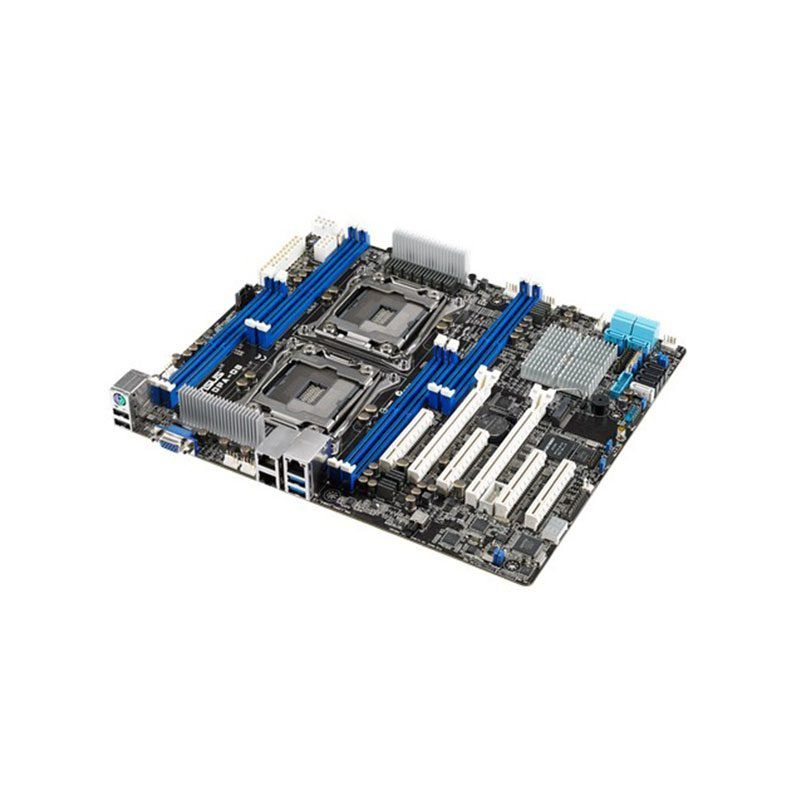

Z10PA-D8(ASMB8-IKVM) ASUS Z10PA-D8 Server Motherboard

Z10PA-D8(ASMB8-IKVM) Technical Specifications

ASUS Z10PA-D8 – Motherboard

Header
Manufacturer: Asus Components
Brand: ASUS
Product Line: ASUS
Model: Z10PA-D8
Packaged Quantity: 1
Processor
Installed Quantity: 0
Max Supported Quantity: 2
Mainboard
Form Factor: ATX
Processor Socket: LGA2011-v3 Socket
Compatible Processors: Xeon E5-2600 v3/v4 series
Data Bus Transfer Rate: 9.6 GT/s
Chipset Type: Intel C612
Supported RAM Technology: DDR4 SDRAM
Supported RAM Speeds: 2133 MHz, 2400 MHz, 1866 MHz, 1600 MHz, 1333 MHz
RAM Slots: 8 DIMM slots
Power Connectors: 24-pin main power, 2 x 8-pin ATX12V connectors
Mainboard Features
BIOS Features: IPMI support
Hardware Monitoring: CPU core temperature, CPU fan tachometer
Interfaces
Storage: Serial ATA-600 (RAID), M.2 socket
Storage Ports: 10 x SATA-600 (RAID), 1 x M.2
USB 3.0 / FireWire: USB 3.0
Networking
Network Controller: 2 x Intel I210AT
Data Link Protocol: Ethernet, Gigabit Ethernet, Fast Ethernet
Expansion Slots: 3 x PCIe 3.0 x8, 2 x PCIe 3.0 x16, 1 x PCIe 2.0 x8
Audio Output
Type: None
Video Output
Graphics Processor: ASPEED AST2400
RAM Supported
Max Supported Size: 512 GB
Details: 512 GB – Load-Reduced – ECC, 256 GB – Registered – ECC
